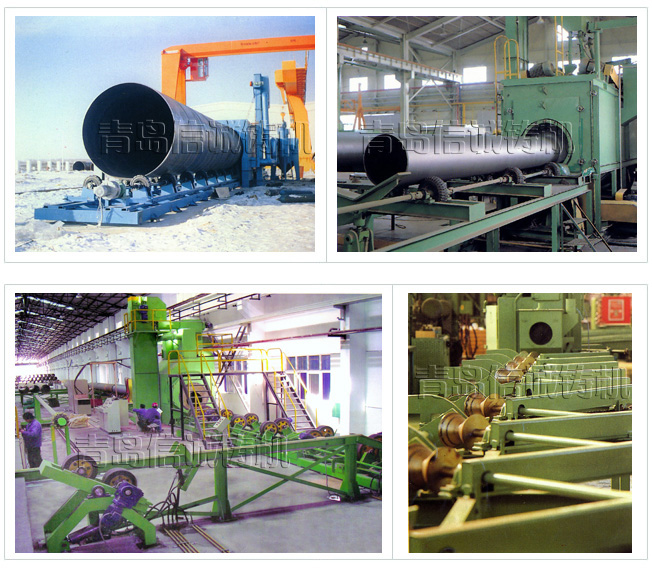

Steel Pipe Surface Shot Blasting Machine

        This series is designed for the large,middle and small calibre size of the steel pipe and the cylinder. Impeller head locate at multi angle, which is the high efficiency blasting wheels, shot blasting with high-speed thick blasting pills and blowing on the surface to have a tridimensional and omnibearing cleaning, to clean away the rusting layer, oxidation layer and other dirty things from surface quickly, to make surface achieve a bright and clean surface and to improve the adhesion force of painting to surface and improve the anti-fatigue force and anti-rust capacity of surface, improve the inherent quality of surface and prolong the lifetime of steel pipe.

Name

Steel Pipe Surface
Shot Blasting Machine

Steel Pipe Surface
Shot Blasting Machine

Steel Pipe Surface
Shot Blasting Machine

Steel Pipe Surface
Shot Blasting Machine

Model
Technical Coefficient

XQG03

XQG07H

XQG10H

XQG12H

 Size of Workpiece being Cleaned mm

φ50-φ400

φ150-φ800

φ80-φ1000

φ100-φ1200

 Speed of the Rollgang m/min

2-8

0.5-6

0.5-6

0.5-6

Impeller Head

 Pill Impelling Volume kg/min

2×280

2×360

2×280

2×320

 Power KW

2×15

2×30

2×22

2×22

Dust Catcher

 Model

ZJC-40

JZC-48

HR-12

HR-12

 Total Wind Volume m3/h

8000

8500

9000

9000

 Total Power KW
 (without Dust Removing System)

42.6

77.77

76.57

77.77

 Appearance Dimension
 (Length×Width×Height)mm

23810×3065×6500

16600×3850×5600

16600×4250×5600

31420×4700×5120


Name

Steel Pipe Surface
Shot Blasting Machine

Steel Pipe Surface
Shot Blasting Machine

Steel Pipe Surface
Shot Blasting Machine

Cast Pipe Surface
Shot Blasting Machine

Model
Technical Coefficient

XQG21H

XQG26H

XQG30

XQG30H

 Size of Workpiece being Cleaned mm

φ800-φ1800

φ1200-φ2600

φ1000-φ3000

φ1200-φ3000

 Max Loading of the Trolley t







10

 Speed of the Rollgang m/min

0.5-6

0.5-6

0.5-6



Impeller Head

 Pill Impelling Volume kg/min

2×280

2×360

2×360

6×250

 Power KW

2×22

2×30

2×30

6×18.5

Dust Catcher

 Model

HR-16

HR-16

HR-24

HR-32

 Total Wind Volume m3/h

12000

12000

18000

24000

 Total Power KW
 (without Dust Removing System)

90.4

104.6

106.6

135.5

 Appearance Dimension
 (Length×Width×Height)mm

35200×5250×5200

35200×5860×5900

35200×6240×6300

18750×6645×11300

The technical coefficients of the forms are only for indication.The details of the coefficient are subject to the technical projects.
