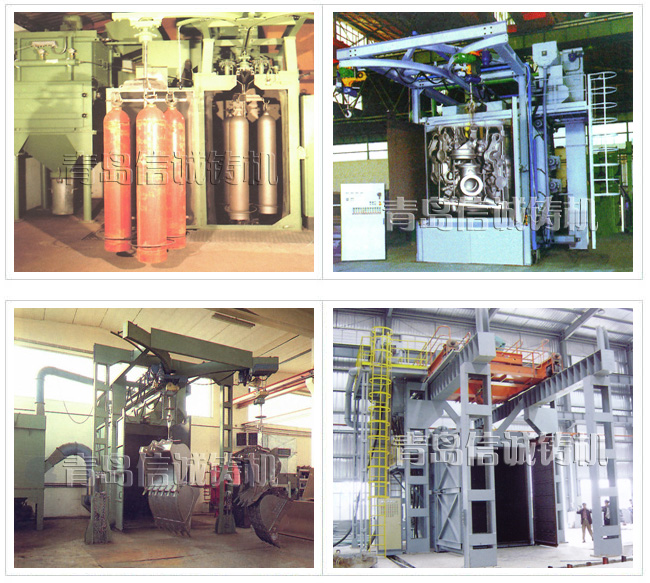

Overhead Rail Spinner Hanger Shot Blast Machine

 This series are hook type shot blast machines,they are widely used in foundry , forging and alloy industy . they could be mainly applied to clean up the surface of casting, Structure, Non-ferrous alloy and any other kinds of spare parts. This series have many models,like Single-hanger, double-hanger, lifting,unlifting,and so on. they have the advantages of no pit , compact form and high productivity.

Name

Overhead Rail Spinner Hanger Shot Blasting Machine

Overhead Rail Spinner Hanger Shot Blasting Machine

Overhead Rail Spinner Hanger Shot Blasting Machine

Overhead Rail Spinner Hanger Shot Blasting Machine

Overhead Rail Spinner Hanger Shot Blasting Machine

Overhead Rail Spinner Hanger Shot Blasting Machine

Overhead Rail Spinner Hanger Shot Blasting Machine

Model
Technical Coefficient

XQ373H

XQ376A

XQ378E

XQ379A

XQ3710HB

XQ3710H

XQ3720HJ

Size of Workpiece being Cleaned mm

φ1000×1100

φ700×1200

φ800×1500

φ900×1600

φ1000×2000

φ1600×2000

φ1200×2500

Model of Impeller Head

XQH32Z

XQH33Z

QZL11

QZL11

QZL11

QZL15

QZL11

Power KW

2×7.5

2×7.5

2×11

2×11

3×11

3×15

4×11

Pill Impelling Volume kg/min

2×90

2×150

2×200

2×200

3×180

3×220

4×180

Max Hangering Weight kg

300

500

1000

1000

1000

1000

2000

Total Power KW
(without Dust Removing System)

17

18.67

27.57

28

41.07

59.87

54.15

Total Wind Volume m3/h

2500

2800

6000

6600

8500

9000

9000

Appearance Dimension
(Length×Width×Height)mm

3950×2920
×4188

3000×1800
×4402

4400×2500
×5443

4470×2600
×5676

5950×2900
×6560

7778×3600
×7685

5600×3000
×8250


Name

Overhead Rail Spinner Hanger Shot Blasting Machine

Overhead Rail Spinner Hanger Shot Blasting Machine

Overhead Rail Spinner Hanger Shot Blasting Machine

Overhead Rail Spinner Hanger Shot Blasting Machine

Overhead Rail Shot Blasting Machine

Overhead Rail Shot Blasting Machine

Overhead Rail Shot Blasting Machine

Model
Technical Coefficient

XQ3720H

XQ3730H

XQ3750H

XQ37100

XQ37160

XQ37200

XQ37300

Size of Workpiece being Cleaned mm

φ1600×3000

φ2000×3500

φ2500×3500

φ3000×3000

φ3500×4500

φ4000×4500

φ4500×5500

Model of Impeller Head

QZL15

XQH400

XQH400

XQH400

XQH400

XQH400

XQH400

Power KW

4×15

4×15

5×15

5×11

6×15

6×15

7×15

Pill Impelling Volume kg/min

4×220

4×250

5×250

5×220

6×280

6×280

7×280

Max Hangering Weight kg

2000

3000

5000

10000

16000

20000

30000

Total Power KW
(without Dust Removing System)

73.97

74.25

90

97.65

120.3

125

155

Total Wind Volume m3/h

9000

10000

12000

12000

17000

20000

23000

Appearance Dimension
(Length×Width×Height)mm

7500×3630
×8580

7900×4150
×8792

11000×4630
×7650

11000×5237
×7745

21000×8200
×9200

21000×8500
×9500

21000×8800
×11000

The technical coefficients of the forms are only for indication.The details of the coefficient are subject to the technical projects.
