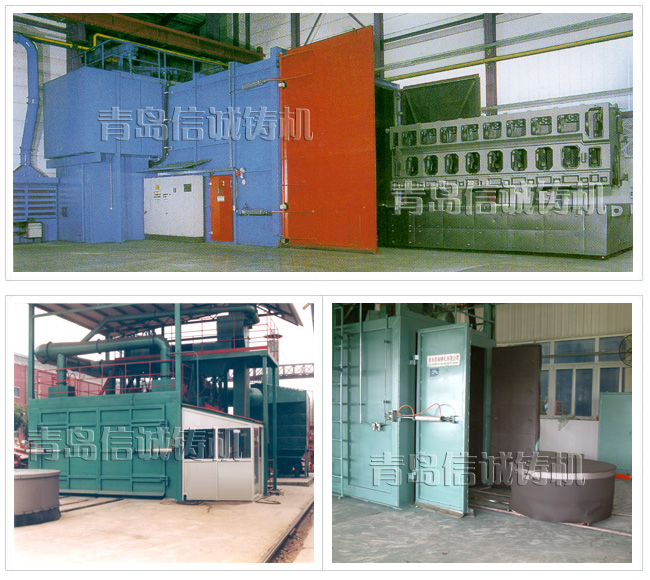

Trolley Type Shot Blasting Machine

    This series is trolley type shot blasting equipment. Shot blasting makes bundle high-speed shots throw to surface of the workpiece on the roll trolley so as to eliminate sticky gravel and scale and other impurities on it, obtaining bright surface with certain rough degree. Shot peening is mainly used for single air blasting disposal to complex inner piece after shot blasting, they could be mainly applied to large and medium-sized workpieces such as machine tool, metallurgy, motorcycle, construction machinery and equipment, re-mining machinery,and so on.

Name

Trolley Type Shot Blasting Machine

Trolley Type Shot Blasting Machine

Trolley Type Shot Blasting Machine

Trolley Type Shot Blasting Machine

Trolley Type Shot Blasting Machine

Model
Technical Coefficient

XQ265

XQ363H

XQ365C

XQ3610H

XQ3620H

Max Size of Workpiece being Cleaned mm

φ1500×1700

φ2000×1000

φ2500×1300

φ2600×1300

φ2500×1300

Size of Inner of Cleaning Room mm

2900×2900×3100

3100×3100×2400

3400×3400×2400

3800×3800×2400

3800×3800×2400

Diameter of the Rotary Trolley mm

φ1500

φ1600

φ2000

φ2000

φ2000

Max Loading on the Trolley kg

5000

3000

5000

10000

20000

Impeller Head Power KW

3×18.5

2×22

2×22

2×22

2×22

Pill Impelling Volume kg/min

3×250

2×280

2×280

2×280

2×280

Total Wind Volume m3/h

8000

8000

13200

13200

26400

Total Power KW
(without Dust Removing System)

70.37

47

53.2

53.2

53.2

Appearance Dimension
(Length×Width×Height)mm

8078×3473×7450

10200×3900×7000

9000×4200×8805

9400×4600×9290

9000×4200×9290


Name

Trolley Type Shot Blasting Machine

Trolley Type Shot Blasting Machine

Trolley Type Shot Blasting Machine

Model
Technical Coefficient

XQ7610HA

XQ7620H

XQ7630H

Max Size of Workpiece being Cleaned mm

φ3000×2000

φ4200×1600

φ4000×2000

Size of Inner of Cleaning Room mm

4200×4200×3500

5600×5600×3400

8000×6600×5500

Diameter of the Rotary Trolley mm

φ3000

φ3700

φ3700

Max Loading on the Trolley kg

10000

20000

30000

Impeller Head Power KW

4×18.5

4×22

4×22

Pill Impelling Volume kg/min

4×280

4×300

4×300

Pill Peening Volume kg/h

800-1200

2000-3000

1000-1500

Total Wind Volume m3/h

30000

25000

31750

Total Power KW
(without Dust Removing System)

96.2

115.5

107.5

Appearance Dimension
(Length×Width×Height)mm

12550×6470×9550

9000×7800×9950

9168×7680×10874

The technical coefficients of the forms are only for indication.The details of the coefficient are subject to the technical projects.
