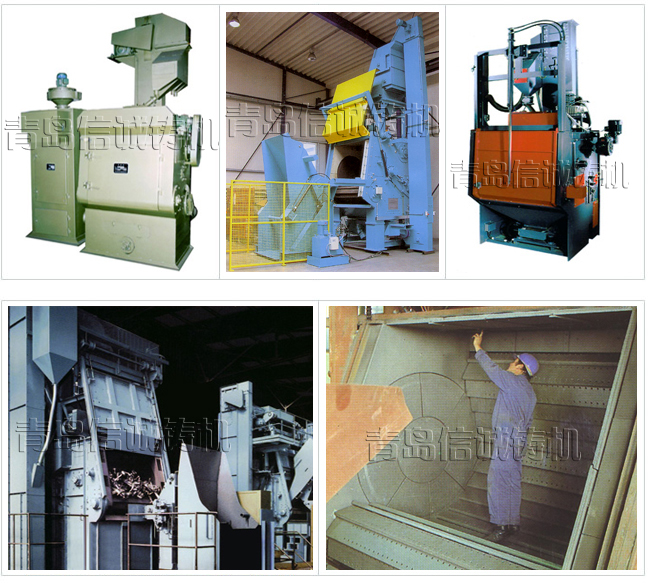

Tumble Belt Type Shot Blasting Machine

     This series uses high-intensity wear-resistant rubber or caterpillar manganese steel to load the workpiece. It throws shot to the casting and forging on the caterpillar consistently ,and clean them. so it could be mainly applied to minimum and medium type workpieces, just like casting, forging, aluminum work piece, stainless steel work piece ,copper work piece,and so on.

Name

Tumble Belt Type Shot Blasting Machine

Tumble Belt Type Shot Blasting Machine

Tumble Belt Type Shot Blasting Machine

Tumble Belt Type Shot Blasting Machine

Tumble Belt Type Shot Blasting Machine

Tumble Belt Type Shot Blasting Machine

Tumble Belt Type Shot Blasting Machine

Tumble Belt Type Shot Blasting Machine

Tumble Belt Type Shot Blasting Machine

Model
Technical Coefficient

Q326C

Q328H

Q328HA

Q3210H

Q3210H

Q6GN

Q15GN

Q25GN

Q28GN

Diameter of Roller mm

φ600

φ800

φ800

φ1000

φ1000

φ737

φ1092

φ1300

φ1245

Working Cubage m3

0.11

0.218

0.218

0.4

0.4

0.17

0.43

0.63

0.79

Unit Piece Weight kg

10

12

12

30

30

22.7

227

300

726

Max Loading Weight kg

200

350

350

600

600

363

1362

2350

3950

Pill Impelling Volume kg/min

100

180

180

250

250

175

480

560

2×560

Impeller Head Power KW

7.5

7.5

7.5

15

15

11

30

37

2×22

Total Wind Volume m3/h

2200

3500

3500

5000

5000

1800

5300

5500

5800

Total Power KW

77.97

11.97

11.97

26.07

24.97

14.7

41.8

62.2

77.6

Appearance Dimension
(Length×Width×Height)mm

1300×1210
×3450

1730×1490
×3944

1730×1490
×3944

1620×1780
×4980

3644×2350
×5000

3681×1850
×4108

4597×3262
×5709

5250×3250
×6500

5300×5432
×6814

The technical coefficients of the forms are only for indication.The details of the coefficient are subject to the technical projects.
