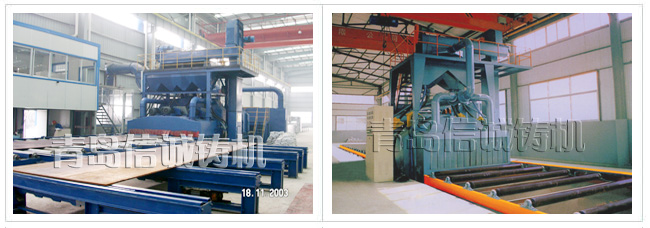

Pass Through Type Steel Plate Shot Blasting Machine


     This series machine is a multi-function steel material and profile steel treating equipment for cleaning steel plates and profiles. The world advanced high efficiency single disk curve blade impeller head projects bunches of pills in high speed and density to impact on the original surface of the steel material and cause the rust layer, welding slag, oxide skin and other stains fall off quickly. The steel material and work pieces obtain a clean surface in certain roughness, thus improve the adhesion of lacquer film to the steel surface. The pill blastinging gives steel work piece metallic luster on the surface and visible part, expose the surface defect and enhances the anti fatigue and corrosion resisting performance. It also improves the inner quality of the steel and prolongs its service life.

Name

Pass Through Type
Steel Plate
Shot Blasting Machine

Pass Through Type
Steel Plate
Shot Blasting Machine

Pass Through Type
Steel Plate
Shot Blasting Machine

Pass Through Type
Steel Plate
Shot Blasting Machine

Model
Technical Coefficient

XQ6908H

XQ6912H

XQ6916H

XQ6920H

Size of Workpiece being Cleaned

 Length m

6-12

6-12

6-12

6-12

 Width mm

800

1200

1600

2000

 Height mm

5-30

300

300

3-50

 Working Speed m/min

0.5-3

0.5-2

0.5-2

1-2

Impeller Head

 Model

XQ03

XQH400

XQH400

XQH420

 Quantity

4

4

4

4

 Power KW

4×11

4×18.5

4×18.5

4×37

 Pill Impelling Volume
 kg/min

4×200

4×300

4×300

4×480

Dust Catcher

 Model

HR-12

HR-16

HR-16

HR-24

 Wind Volume m3/h

9000

12000

12000

18000

 Power KW

11

22

22

30

 Total Power KW

82.4

116.9

116.9

211.9

 Appearance Dimension
 (Length×Width×Height)mm

25500×3600×6260(underground1000)

25040×4660×7090(underground1300)

25040×5060×7290(underground1300)

32119×5208×8513(underground2000)


Name

Pass Through Type
Steel Plate
Shot Blasting Machine

Pass Through Type
Steel Plate
Shot Blasting Machine

Pass Through Type
Steel Plate
Shot Blasting Machine

Pass Through Type
Steel Plate
Shot Blasting Machine

Model
Technical Coefficient

XQ6925H

XQ6930

XQ6936H

XQ6940

Size of Workpiece being Cleaned

 Length m

6-12

6-12

7-15

6-12

 Width mm

2500

3000

1000-3600

4000

 Height mm

40

5-60

4-60

6-60

 Working Speed m/min

0.5-2

0.5-2

0.5-1.5

0.8-2

Impeller Head

 Model

XQ03

XQ03

XQH420

XQH420

 Quantity

6

6

8

8

 Power KW

6×15

6×18.5

8×30

8×30

 Pill Impelling Volume
 kg/min

6×280

6×280

8×450

8×450

Dust Catcher

 Model

HR-32

HR-48

HR-48

HR-48

 Wind Volume m3/h

24000

36000

36000

36000

 Power KW

30

37

37

37

 Total Power KW

149.4

215

238

238

 Appearance Dimension
 (Length×Width×Height)mm

21800×5500×9200(underground2550)

35330×6850×9664(underground2550)

35330×7650×9664(underground2550)

35330×7920×9664(underground2550)

The technical coefficients of the forms are only for indication.The details of the coefficient are subject to the technical projects.
