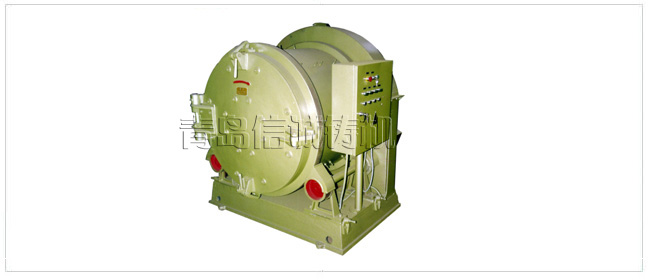

Drum Type Shot Blasting Machine


     This series adopts high-speed rotary impeller, throws shot to the casting and forging in the roller roll consistently, and clears away scale, which could make surface of the work piece cleaned averagely, showing primitive color of metal.

Name

Drum Type Shot Blasting Machine

Drum Type Shot Blasting Machine

Drum Type Shot Blasting Machine

Model
Technical Coefficient

Q3110I

Q3113C

Q3113D

Drum Diameter  mm

φ1000

φ1300

φ1300

Unit Piece Weight  kg

15

40

40

Max Loading Weight  kg

300

800

800

Pill Impelling Volume  kg/min

160

200

200

Impeller Head Power  KW

7.5

11

11

Total Wind Volume  m3/h

800

1400

1400

Total Power  KW

9.35

14

14

Appearance Dimension
(Length×Width×Height)mm

2078×2165×1861

2700×2800×2300

2700×2800×2300

The technical coefficients of the forms are only for indication.The details of the coefficient are subject to the technical projects.
