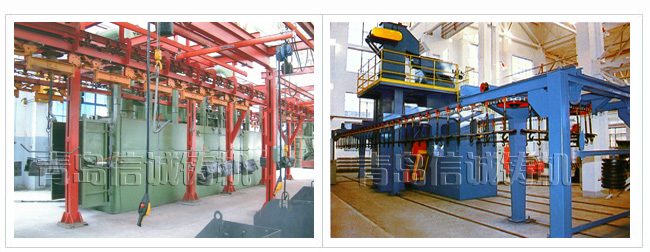

Hangering Chains Type Continuous Working Overhead Rail Shot Blasting Machine

      This series belongs to two-trip hangers pass-through type, could be mainly applied to clean minimum and medium type workpieces.They can eliminate sticky gravel and scale and other impurities on it, obtaining bright surface with certain rough degree, and improve decoration quality.

Name

Hangering Chains type Continuous Working Overhead Rail Shot Blasting Machine

Hangering Chains type Continuous Working Overhead Rail Shot Blasting Machine

Model
Technical Coefficient

XQ382H

XQ384H

Size of Workpiece being Cleaned mm

φ700×1200

φ700×1500

Quantity of Impeller Head

4

6

Pill Impelling Volume kg/min

4×250

6×320

Impeller Head Power KW

4×15

6×18.5

Distance beteween hangering chains mm

800

400

Max Hangering Weight kg

240

400

Productivity Hanger/h

35-55

60-120

Size of Cleaning Room mm

5000×2400×2200

10000×2600×2500

Total Wind Volume m3/h

15000

26500

Total Power KW
(without Dust Removing System)

73.1

131.7

Appearance Dimension mm
(Length×Width×Height)

11600×3900×7285

15300×8147×10600

The technical coefficients of the forms are only for indication.The details of the coefficient are subject to the technical projects.
