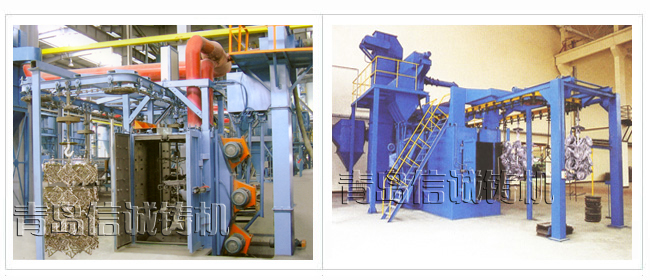

Hanger Stepping Type Continuous Working Overhead Rail Shot Blasting Machine

      This series uses multiple-step and rotating point fixed method to clean away the antiquated sand and oxidation layer from the surface quickly, and make the surface bright and clean. It is mainly used for the fittings of vehicles such as the swing bolster, side frame, coupler and coupler yokes, also for cleaning the castings and workpieces with the similar size.

Name

Hanger Stepping Type Continuous Working Overhead Rail
Shot Blasting Machine

Hanger Stepping Type Continuous Working Overhead Rail
Shot Blasting Machine

Hanger Stepping Type Continuous Working Overhead Rail
Shot Blasting Machine

Hanger Stepping Type Continuous Working Overhead Rail
Shot Blasting Machine

Model
Technical Coefficient

XQ485H

XQ4810H

XQ483HB

XQ483HA

Size of Workpiece being Cleaned mm

φ1000×1500

φ1000×2500

φ1000×1200

φ1000×1200

Number of Work Position

2

2

2

3

Quantity of Impeller Head

4

6

4

6

Pill Impelling Volume kg/min

4×250

6×250

4×260

6×350

Impeller Head Power KW

4×15

6×15

4×15

6×22

Max Hook Loading Weight kg

500

1000

300

300

Productivity Hook/h

30-40

40-60

40

60

Size of the Cleaning Room mm

7680×2000×2900

7680×2000×3800

7680×2000×2400

7680×2000×2400

Total Wind Volume m3/h

19000

19000

18000

19000

Total PowerKW
(without Dust Removing System)

73.15

114.72

73.15

159.55

Appearance Dimension mm
(Length×Width×Height)

9450×4950×
6400(Above ground)

9450×4950×
7300(Above ground)

9450×4950×6400

15900×4950×8000

The technical coefficients of the forms are only for indication.The details of the coefficient are subject to the technical projects.
